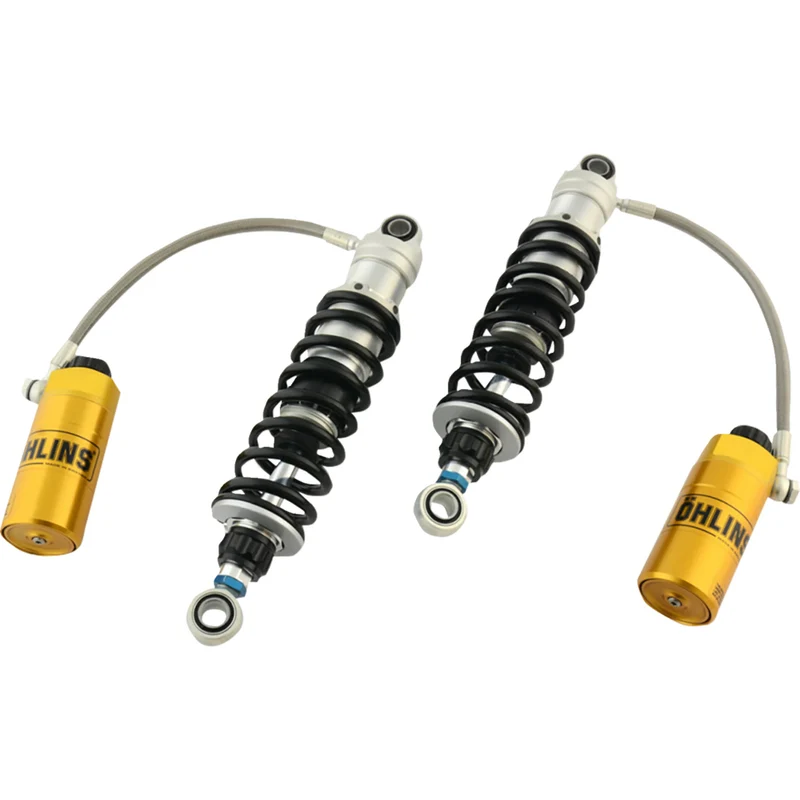

Öhlins STX Pro Rear Shocks 13-Inch – HD 357 For Harley Touring 1991-2013

Description

Öhlins STX Pro Rear Shocks for Adjustable Motorcycle Suspension

Upgrade your motorcycle’s suspension with Öhlins STX Pro Rear Shocks. Designed for street riding, these premium twin shock absorbers combine adjustable damping with precision-engineered components. Their black finish, external hose reservoirs, and adjustable setup make them an option for riders seeking greater control over suspension performance.

The STX Pro design focuses on ride comfort, handling, and personalized tuning. Independent compression and rebound adjustments allow riders to tailor suspension response to their preferences. Additionally, adjustable preload helps accommodate different rider weights and motorcycle loads when configured correctly.

Öhlins STX Pro Rear Shocks with Adjustable Compression and Rebound

These Öhlins STX Pro Rear Shocks feature adjustable compression and rebound damping. Compression damping controls how the shock responds as it compresses over bumps. Rebound damping influences how the suspension returns after compression.

Adjusting these settings helps riders refine suspension response for different roads and riding styles. Whether you prefer comfortable cruising or more responsive handling, the adjustment system provides flexibility to tune your setup.

The shocks also feature adjustable preload using a billet adjustment tool. This helps riders set the initial spring compression to suit the motorcycle’s load and setup. Follow the manufacturer’s instructions when making changes, and confirm that your selected settings are appropriate for your application.

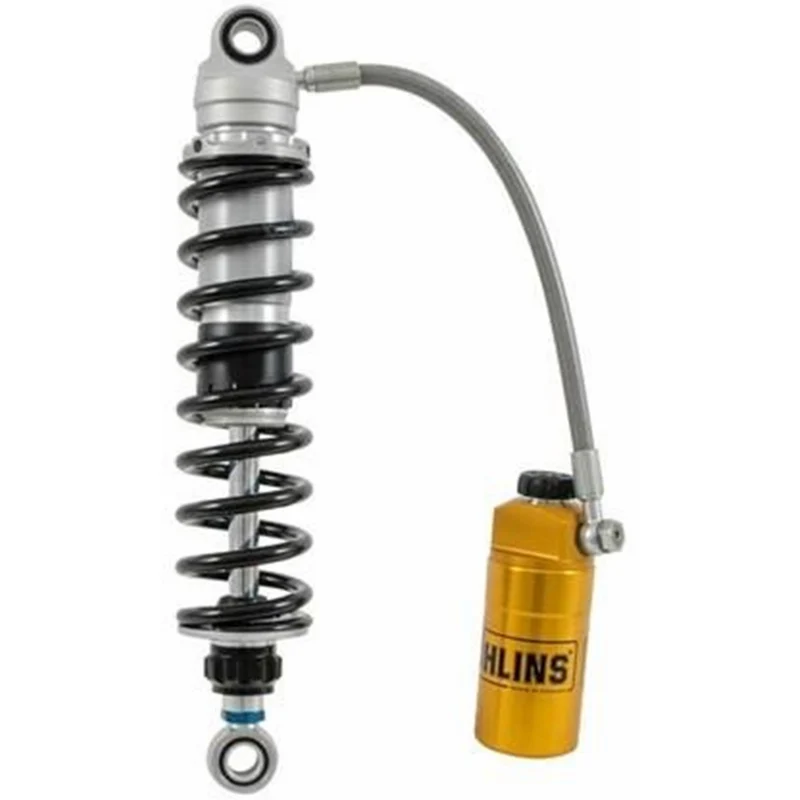

STX Pro Motorcycle Shocks with External Reservoirs

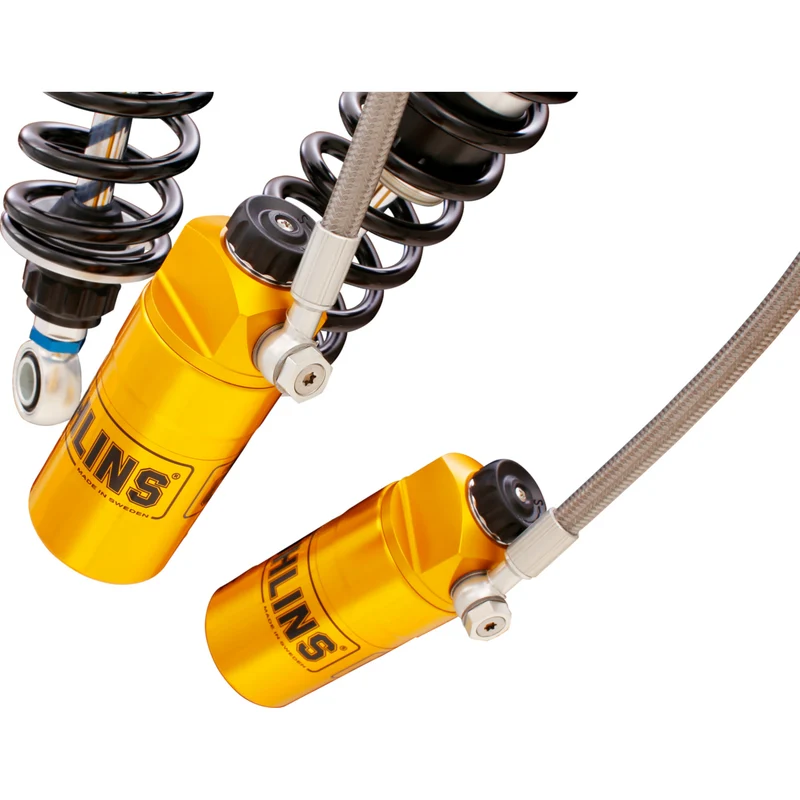

The STX Pro uses a monotube design with an external hose reservoir. Its high-pressure nitrogen gas charge supports consistent suspension operation, while the 36 mm piston is engineered to deliver responsive damping performance.

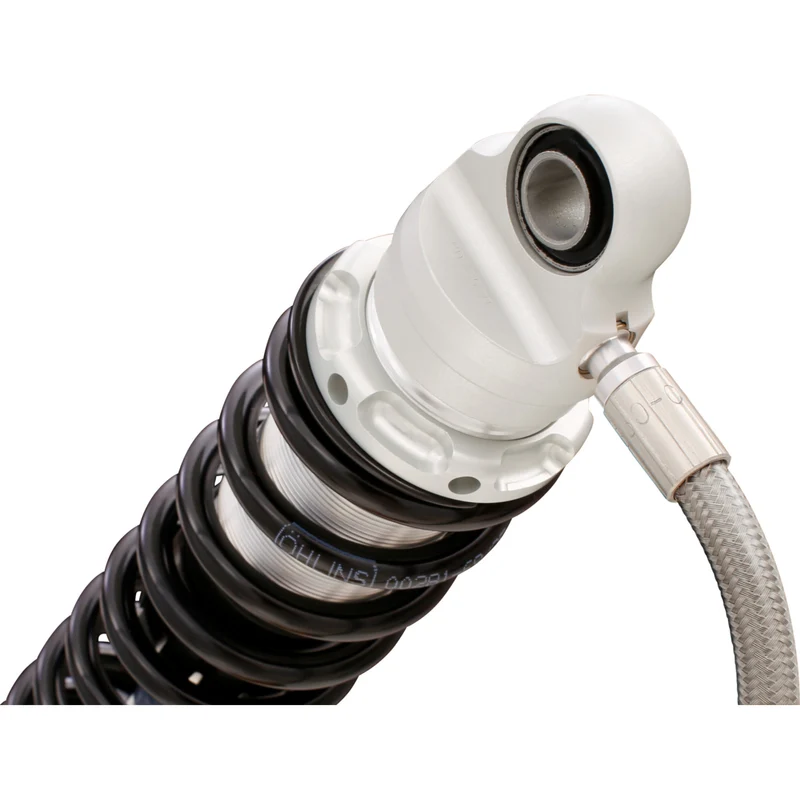

The low-friction shaft and seal-head design helps reduce friction during suspension movement. Furthermore, precision CNC-machined components and hard-anodized finishes support durability in regular riding conditions.

Multiple spring rates are available across the range. Selecting the correct spring rate is important because rider weight, passenger weight, luggage, and riding conditions can affect suspension performance.

Öhlins STX Pro Rear Shocks Specifications

• Product type: Rear shock absorber
• Model: STX Pro
• Shock design: Twin shock absorbers
• Construction: STX single-tube design
• Piston diameter: 36 mm
• Extended length: 13.307 inches, with a stated tolerance of +0/-0.393 inches
• Additional listed length: 13.00 inches
• Length adjustment: Up to 0.5 inch
• Stroke length: 3.583 inches
• Reservoir: External hose reservoir
• Gas charge: High-pressure nitrogen
• Damping adjustment: Compression and rebound
• Preload adjustment: Adjustable with billet tool
• Color and finish: Black, with hard-anodized precision components
• Linear spring rate: Listed as 26 N/m; confirm the manufacturer’s exact specification and unit before ordering
• Maximum listed rider weight: 500 lb
• Listed weight range: 150–500 lb
• Mounting position: Rear
• Riding style: Street
• Units: One pair
• Spring reference: Öhlins part number 66422-026

Benefits of Öhlins STX Pro Rear Shocks

Öhlins STX Pro Rear Shocks combine adjustable damping, precision-machined components, and a serviceable design. Their compression and rebound controls help riders personalize suspension behavior instead of relying on a single fixed setting.

The external reservoir and nitrogen gas charging support the shock’s operating design. Meanwhile, the low-friction shaft and seal-head arrangement is engineered to promote smooth movement and consistent suspension feel.

Another advantage is serviceability. These shocks are designed to be serviced and repaired, helping owners maintain their suspension over time. Service intervals and repair procedures should follow the manufacturer’s recommendations.

Adjustable Motorcycle Suspension for Different Riders

Rider weight and riding conditions influence how a motorcycle’s suspension performs. The STX Pro range offers multiple spring rates to suit different applications. Correct spring selection helps establish an appropriate starting point for suspension setup.

Preload adjustment helps accommodate changes in load, while compression and rebound settings provide further tuning options. However, adjustment cannot compensate for an incorrectly selected spring or incompatible shock.

Use the listed weight range as a reference only. Confirm the manufacturer’s recommended combined load limits and application-specific settings before installation.

Precision Construction and Long-Term Serviceability

The STX Pro features precision CNC-machined components and a hard-anodized finish. Its low-friction shaft and seal-head design is intended to improve suspension feel, while the serviceable construction allows maintenance when required.

These features make the shocks worth considering for riders seeking adjustable performance and ongoing service support. Installation should be completed using the correct tools and manufacturer-approved procedures.

Check Fitment Before Ordering Öhlins STX Pro Rear Shocks

Before purchasing, verify your motorcycle’s exact year, make, model, mounting dimensions, and recommended shock length. The supplied specifications include both 13.307-inch and 13.00-inch length references, so confirm the correct measurement for the specific part number.

Also verify the spring rate, weight recommendations, and compatibility with your motorcycle’s suspension setup. Consult the manufacturer or a qualified suspension specialist if any specification is unclear.

Choose Öhlins STX Pro Rear Shocks for Personalized Performance

Öhlins STX Pro Rear Shocks offer adjustable compression and rebound damping, preload adjustment, an external reservoir, and a serviceable design. These features provide flexibility for riders who want to fine-tune their suspension for street riding.
